Postby tinhdhmo » 11 Jul 2016, 08:58

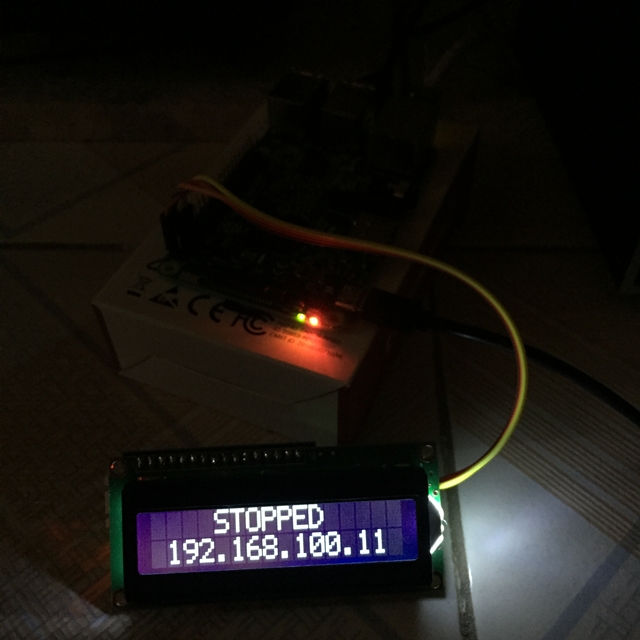

Here some pictures about my Music Server, I am a big fan of RuneAudio and today I want to share my Pi - my Music Server , it's really cheap , working perfect . Thank you for watching :D

Add me on the Facebook : https://www.facebook.com/tinhdhmo
Attachments
Test
tinhdhmo

Posts: 8
Joined: 20 Apr 2016, 10:19

Re: Raspberry _ RuneAudio_1602 LCD- DIY Music Server

Postby tinhdhmo » 11 Jul 2016, 09:00

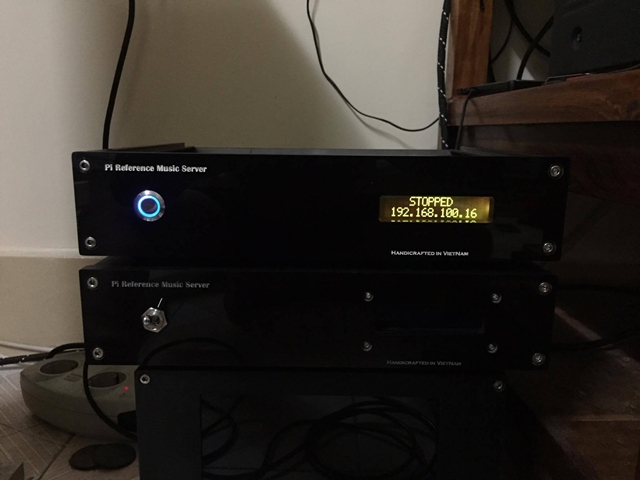

Finish product, I used Linear Power Supply (LT1084 - Current max 5A ) for this
Attachments
Last edited by tinhdhmo on 02 Mar 2017, 18:29, edited 1 time in total.
tinhdhmo

Posts: 8
Joined: 20 Apr 2016, 10:19

Re: Raspberry _ RuneAudio_1602 LCD- DIY Music Server

Postby tinhdhmo » 11 Jul 2016, 09:12

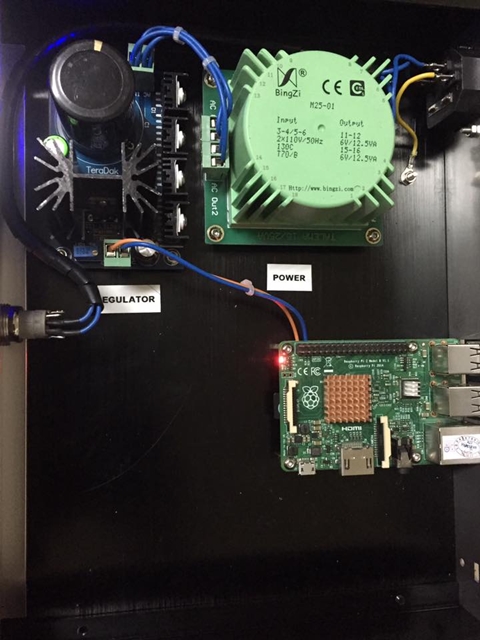

Here are pictures inside, Power unit and Regulator Modul
Attachments
Regulator PCB
Pi
tinhdhmo

Posts: 8
Joined: 20 Apr 2016, 10:19

Re: Raspberry _ RuneAudio_1602 LCD- DIY Music Server

Postby rikardo1979 » 11 Jul 2016, 09:40

very nicely done.Nice case for it and I like the yelow display as it goes perfect with it.
I dont see any I2S DAC attached to your RPi. So how do you output your sound?
>>>Please always follow rules and read before you post<<<
User avatar
rikardo1979

Posts: 197
Joined: 10 Apr 2016, 14:34

Re: Raspberry _ RuneAudio_1602 LCD- DIY Music Server

Postby tinhdhmo » 11 Jul 2016, 10:02

rikardo1979 wrote:very nicely done.Nice case for it and I like the yelow display as it goes perfect with it.
I dont see any I2S DAC attached to your RPi. So how do you output your sound?

Hi
I use USB Interface Gustard U12, because my DAC 's so old, it don't have USB input. However, I have just order Digi+ modul in Hifiberry and next time I will put together, when done I will show it

Thank you for reply
tinhdhmo

Posts: 8
Joined: 20 Apr 2016, 10:19

Re: Raspberry _ RuneAudio_1602 LCD- DIY Music Server

Postby rikardo1979 » 11 Jul 2016, 11:06

tinhdhmo wrote:
rikardo1979 wrote:very nicely done.Nice case for it and I like the yelow display as it goes perfect with it.
I dont see any I2S DAC attached to your RPi. So how do you output your sound?

Hi
I use USB Interface Gustard U12, because my DAC 's so old, it don't have USB input. However, I have just order Digi+ modul in Hifiberry and next time I will put together, when done I will show it

Thank you for reply

nice one ;)
In a case you have not placed your order for Digi+, you may consider Audiophonics I-Sabre ES9023 DAC. Very good sound and I am pleased with it
audiophonics-i-sabre-v3-dac-es9023-tcxo-t3377.html
>>>Please always follow rules and read before you post<<<
User avatar
rikardo1979

Posts: 197
Joined: 10 Apr 2016, 14:34

Re: Raspberry _ RuneAudio_1602 LCD- DIY Music Server

Postby dunghnguyen » 19 Jul 2016, 13:03

Wow the lcd display is so nice :) ... you made the light on / off power button nicely and perfectly as well.
dunghnguyen

Posts: 228
Joined: 08 Mar 2016, 07:48

Re: Raspberry _ RuneAudio_1602 LCD- DIY Music Server

Postby tinhdhmo » 27 Jul 2016, 08:01

dunghnguyen wrote:Wow the lcd display is so nice :) ... you made the light on / off power button nicely and perfectly as well.

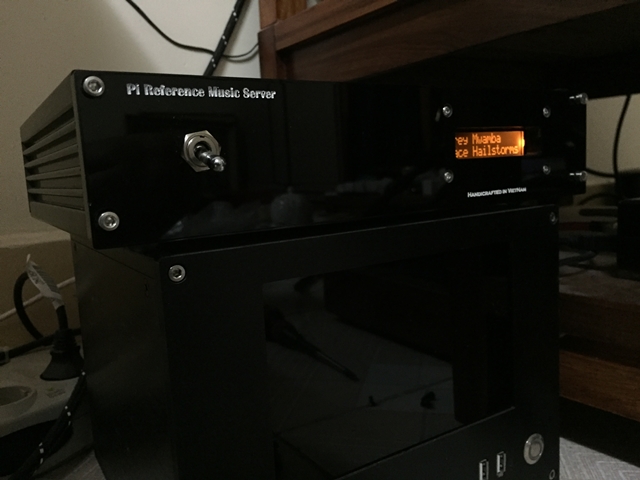

Thanks, the last version I am going use power button with the light. It will look better than button I am using this version :D

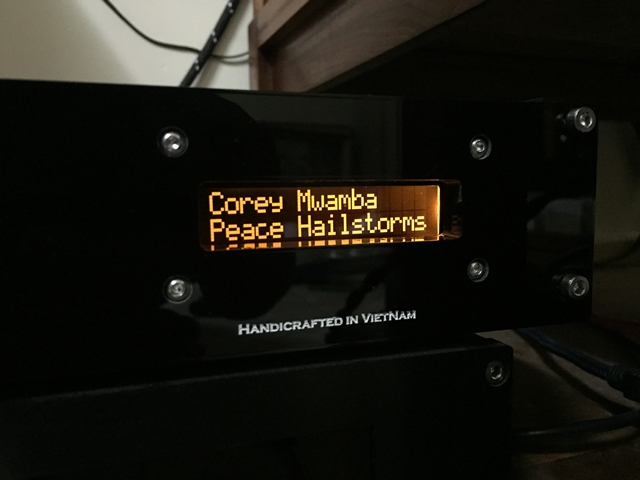

Right now, I am try fix some errors about display, and use an Oled Display, I am really interesting it
Attachments
tinhdhmo

Posts: 8
Joined: 20 Apr 2016, 10:19

Re: Raspberry _ RuneAudio_1602 LCD- DIY Music Server

Postby dunghnguyen » 30 Jul 2016, 15:30

Wow it is really kool buddy ! ... I like that ...cyan style ..is it :)
dunghnguyen

Posts: 228
Joined: 08 Mar 2016, 07:48

Re: Raspberry _ RuneAudio_1602 LCD- DIY Music Server

Postby RB0135 » 03 Sep 2016, 00:54

Looks Fantastic.

Any chance you could list the components/case model numbers.

Thanks,
Rob
#1 - rune audio 0.4, Raspberry Pi 3B, HiFiBerry DAC+ Pro, Wifi-Static IP, Music on NAS, Technics SU-V550 (RCA)
#2 - rune audio 0.4, Raspberry Pi 3B, HiFiBerry DIGI+ (Transformer version), Wifi-Static IP, Music on NAS, Sony STR-DA5400ES (Coax)
RB0135

Posts: 17
Joined: 23 Aug 2016, 09:08

support RuneAudio Donate with PayPal
