WaveShare 7" HDMI touch screen (C)

Postby smallfat » 26 Jan 2016, 06:50

Anyone know RuneAudio for ODROID 0.3 beta support WaveShare 7" HDMI touch screen (C) Rev2.1?

http://www.waveshare.com/product/module ... -lcd-c.htm

Following are its features
**********************************
- 1024×600 high resolution
- Capacitive touch control
- Supports Raspberry Pi
- Supports Banana Pi / Banana Pro, comes with Lubuntu, Raspbian images
- Supports BB Black, comes with Angstrom image
- Not only for mini-PCs, it can work as a computer monitor just like any other general HDMI screen
- HDMI interface for displaying, USB interface for touch control
- Back light control to lower power consumption


For revisions under Rev2.1:
*************************************
- For the Raspberry Pi, comes with Raspbian driver (works with your Raspbian directly), and Ubuntu image
- When work as a computer monitor, touch function is unavailable

Rev2.1 New Features:
*******************************
- Upgrade to IPS screen, wider viewing angle, more clear displaying
- Standard HID protocol, easy to be integrated into your system
- For the Raspberry Pi, supports Raspbian, Ubuntu, Windows 10 IoT, single touch, and driver free
- When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free
smallfat

Posts: 155
Joined: 23 Nov 2015, 22:16

Re: WaveShare 7" HDMI touch screen (C)

Postby hondagx35 » 30 Mar 2016, 15:52

Hi all,

a friend of mine bought one.

It works well with the latest images for RP2 and RP3.
You only have to adapt the /boot/config.txt file:
Code: Select all
hdmi_group=2
hdmi_mode=1
hdmi_mode=87
hdmi_cvt 1024 600 60 6 0 0 0

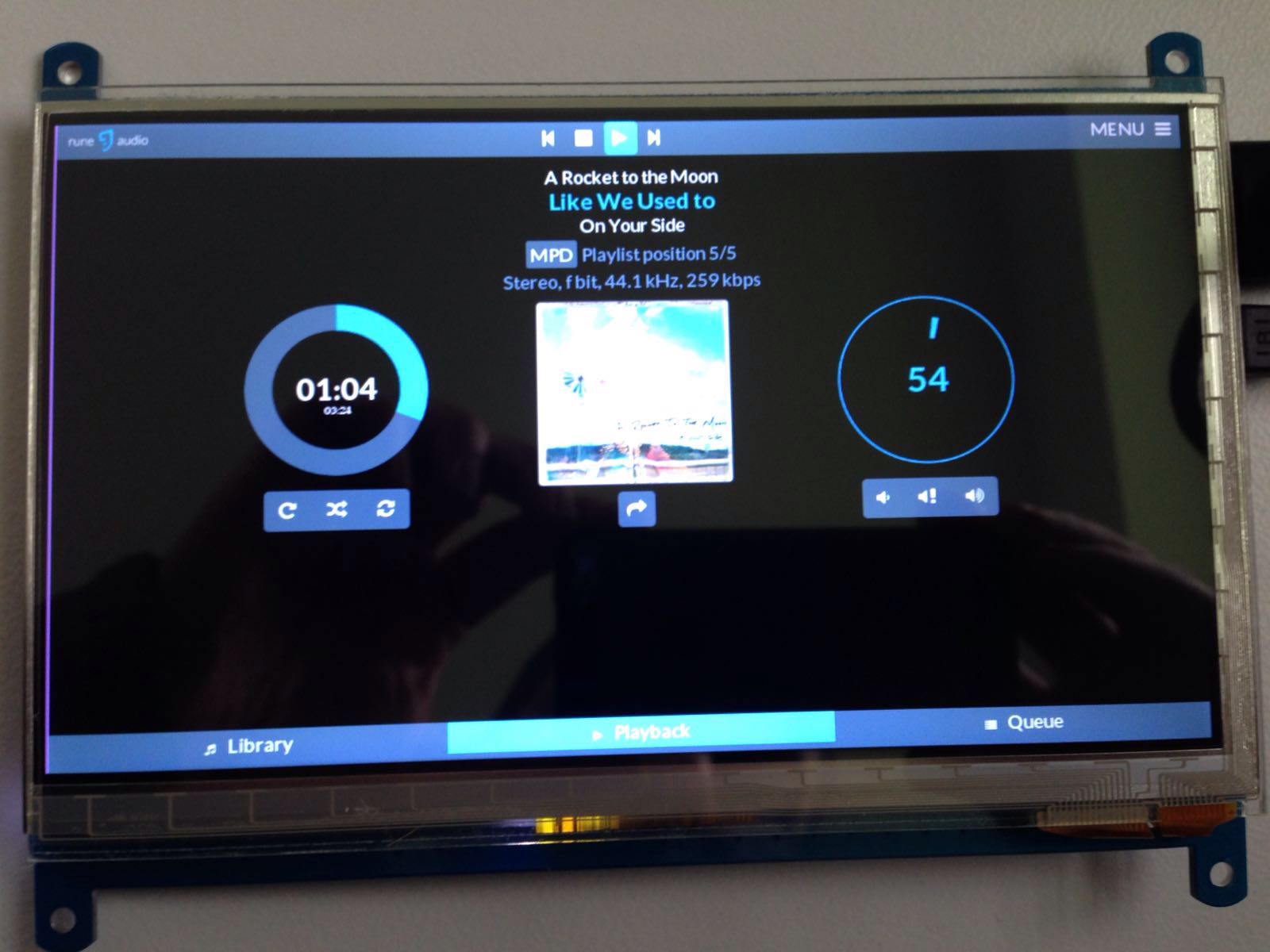

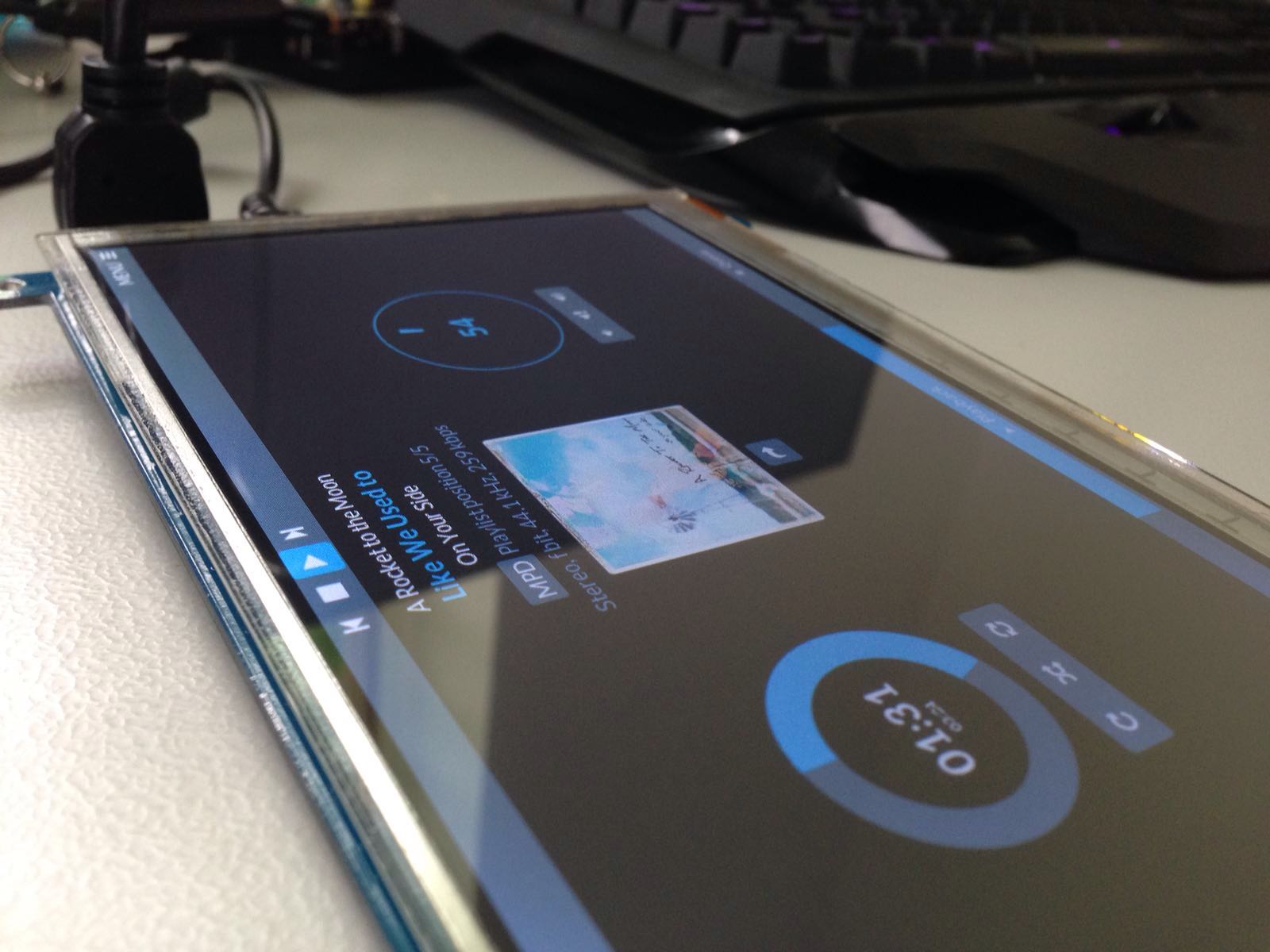

Nice viewing angle and responsive touch functionality.

As he told me it is absolutely plug and play.




Frank
User avatar
hondagx35

Posts: 3034
Joined: 11 Sep 2014, 22:06
Location: Germany

Re: WaveShare 7" HDMI touch screen (C)

Postby smallfat » 01 Apr 2016, 13:30

Hi Frank,

Thanks your great news.
I have just bought RP3, too. I will try it soon.
It really a great display compare with lower resolution one.

Could you tell me what I needed for ODROID C1+/C2.

I just a kid on Linux.

Best Regards
Michael
smallfat

Posts: 155
Joined: 23 Nov 2015, 22:16

Re: WaveShare 7" HDMI touch screen (C)

Postby smallfat » 01 Apr 2016, 13:34

Hi Frank,

Another question to your fix.
There is no "DC in" socket at RP3,
How you connect RP3 and WaveShare display to let touch screen work.

Thanks and Regards
smallfat

Posts: 155
Joined: 23 Nov 2015, 22:16

Re: WaveShare 7" HDMI touch screen (C)

Postby hondagx35 » 01 Apr 2016, 16:40

Hi smallfat,

Could you tell me what I needed for ODROID C1+/C2.

For the ODROIDs there is no image with local browser.
Please search the forum, odroider has posted a how-to.

How you connect RP3 and WaveShare display to let touch screen work.

It is connected via USB (power and touch data)

Frank
User avatar
hondagx35

Posts: 3034
Joined: 11 Sep 2014, 22:06
Location: Germany

Re: WaveShare 7" HDMI touch screen (C)

Postby smallfat » 01 Apr 2016, 23:15

Hi,

Thanks prompt reply.

For the ODROIDs there is no image with local browser.
Please search the forum, odroider has posted a how-to.


Which section?

It is connected via USB (power and touch data)

like these?
7" display HDMI < > RP3 HDMI
7" display mirco USB < > RP3 micro USB
Power via USB on back panel.

As I will put RP3 inside a case, I need provide power on board.
So I think I need provide power via GPIO 40 Pin (Pin 2,4 and 6)


Michael
smallfat

Posts: 155
Joined: 23 Nov 2015, 22:16

Re: WaveShare 7" HDMI touch screen (C)

Postby smallfat » 07 Apr 2016, 05:37

Hi Frank,

I cannot find post of odroider discussing how ODROID connect with WaveShare 7" HDMI display (C).
May you help me?

Best Regards
Michael
smallfat

Posts: 155
Joined: 23 Nov 2015, 22:16

Re: WaveShare 7" HDMI touch screen (C)

Postby Dohmar » 09 Apr 2016, 10:59

I checked out the website for waveshare, they have a 10.1" touchscreen that would work perfectly with my project, as it has front mounted holes to mount to a panel. I'm going to get that screen instead of the official RPI touchscreen as they are the same price and the 10.1" is easier to mount into a custom chassis

The 10.1" version requires a 12v@1amp power supply, but I can tap this directly from the x400 HAT as I'm feeding it 5amp @ 12v already.
-D
Dohmar

Posts: 79
Joined: 14 Mar 2016, 12:27

Re: WaveShare 7" HDMI touch screen (C)

Postby hondagx35 » 09 Apr 2016, 11:19

Hi Dohmar,

i have both the 7" IPS and the 10.1" (1024*600).
I would go with the IPS display because of the better viewing angle and brilliant display.

Frank
User avatar
hondagx35

Posts: 3034
Joined: 11 Sep 2014, 22:06
Location: Germany

Re: WaveShare 7" HDMI touch screen (C)

Postby smallfat » 12 Apr 2016, 23:55

Thanks Frank.

I think time circle, volume circle and album cover
should be bigger when using 1024*600 display
:D :D :D
Otherwise, there is many blank space.
Or more info ( or feature) will be added also welcome, haha

Best Regards
Michael

hondagx35 wrote:Hi Dohmar,

i have both the 7" IPS and the 10.1" (1024*600).
I would go with the IPS display because of the better viewing angle and brilliant display.

Frank
smallfat

Posts: 155
Joined: 23 Nov 2015, 22:16
