Hi Friends,

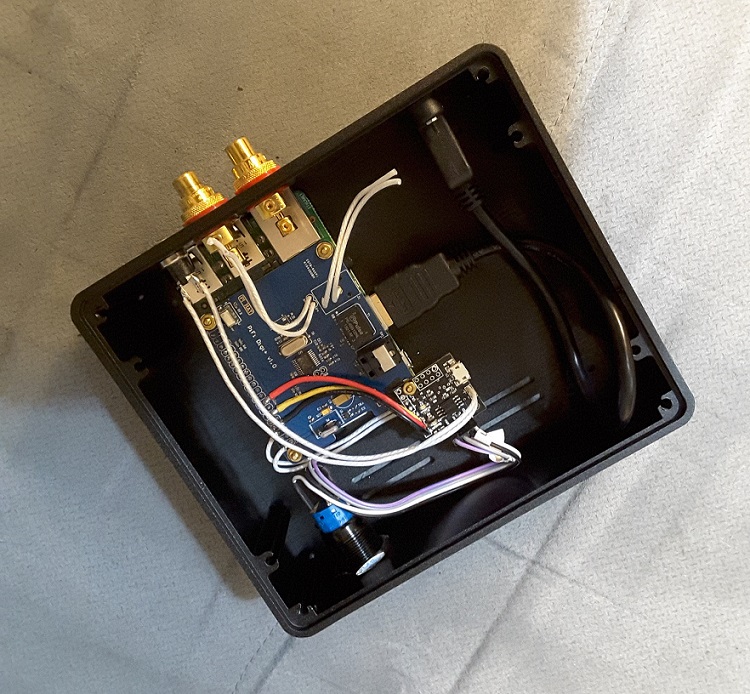

I have just made a box similar to this link (photos to follow). I intended to use RuneAudio UI , but I have difficulties to configure the UI to read the GPIOs, the Digi+ and the Pwr Mgt Module. Can anyone so nice help?

I even have a problem with my keyboard (I use US keyboard, but the default UI keyboard layout is different), how to change to match?

Thank you in advance.

Regards,
Charles

Attachments

: 2016-06-16 20.41.59.jpg (231.04 KiB) Viewed 2597 times

charles6680

I have checked all wiring and is correct. This is the back view.

Attachments

: 2016-06-16 20.42.44.jpg (232.52 KiB) Viewed 2593 times

hondagx35

Hi Charles,

I even have a problem with my keyboard (I use US keyboard, but the default UI keyboard layout is different), how to change to match?

see http://www.runeaudio.com/documentation/troubleshooting/rpi-troubleshooting/

I intended to use RuneAudio UI , but I have difficulties to configure the UI to read the GPIOs, the Digi+ and the Pwr Mgt Module.

Which IOs?
Maybe this helps to configure the power module:
#3377

Frank

charles6680

Hi Frank,

The GPIO 4, 17 & 22.

The Pwr Mgt Module is ATX like. Which gives Softstart, Softshutdown & full power off.

See this link
http://www.audiophonics.fr/en/diy-kits-boards/module-de-gestion-alimentation-atx-pour-raspberry-pi-p-10912.html

I will study the link provided but it seems for the DAC+

THANKS.
Charles

charles6680

Hi Frank,
I tried to change the keyboard to us layout accordingly but does not work. Is it simply type keymap=us and exit and then reboot? Nothing changed!
Can you show me the scripts (step by step)? I am totally no knowledge of Linux language.

Thanks again.

Charles

charles6680

Hello Frank,
With big smile!

Finally, I have successfully changed the keyboard to US layout and activated the Digi+.

With Rune, it sounds excellent. Absolutely excellent!!

Remaining, is to make the Pwr Mgt Module working. I will continue by consulting your provided link for the DAC+.

Regards,
Charles

charles6680

Present inside look. All wires connected.

Attachments

: 2016-06-17 00.16.11.jpg (247.58 KiB) Viewed 2565 times

charles6680

http://forum.audiophonics.fr/viewtopic.php?f=4&t=1620&sid=619fd50c689d22e5f93b906a16961c81

I found the above discussion in Audiophonics' Forum.

Following it, my DIY Unit is now full functioning.

Frank, Thank you for your help start from the very beginning.

Regards,
Charles
