Turn amplifier ON/OFF via relay

Suggestions/requests/ideas for RuneAudio core features and functions

Re: Turn amplifier ON/OFF via relay

Postby Midnight » 04 Sep 2014, 15:28

But this one won't power off the RPi ;)
User avatar
Midnight
Moderator

Posts: 141
Joined: 19 Feb 2014, 14:46

Re: Turn amplifier ON/OFF via relay

Postby cmh714 » 04 Sep 2014, 15:43

Midnight wrote:But this one won't power off the RPi ;)


Fair enough, I did not look that far Midnight. TY :)
cmh714

Posts: 276
Joined: 04 May 2014, 03:06

Re: Turn amplifier ON/OFF via relay

Postby frengo » 19 Apr 2016, 22:00

Hello.

I read the thread thinking it were a system to power cycle an audio amplifier or other analog parts of the system, but I understand that we are talking about turning on / off the raspberry.

Do you know if someone has made a script to change how you want the logic state at will of one or more outputs of the GPIO connector, maybe on ODROID C1 +?

Thank you.
frengo

Posts: 42
Joined: 04 Dec 2015, 19:03

Re: Turn amplifier ON/OFF via relay

Postby Eph » 27 Aug 2016, 20:45

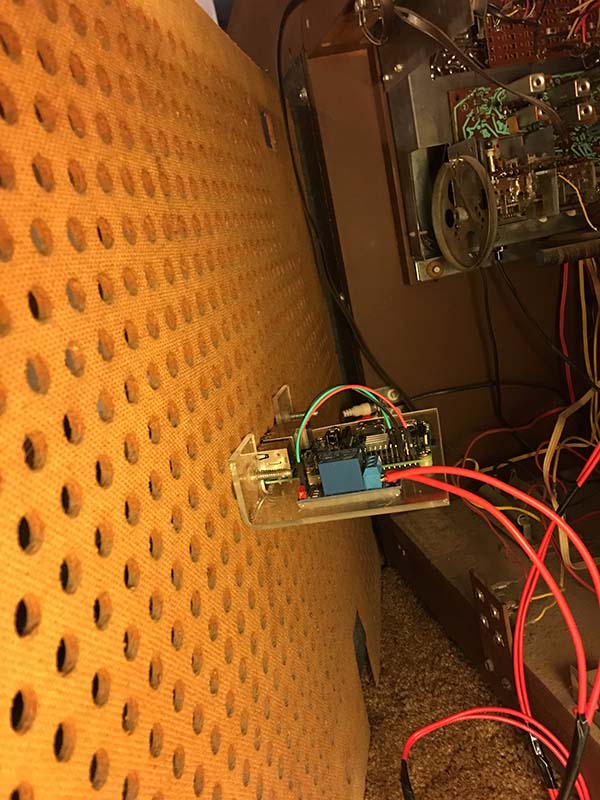

I wrote a simple script "gpio_toggle.sh" to toggle the state of one GPIO connected to a relay that toggle the power to my DAC. This works
however I fill my implementation into the WebUI is sloppy at best. I compaired cyber7 "Volume Fade Over Time" to the unmodified webui.

Would someone give me an example of how to properly execute
sysCmdAsync('sh /var/www/command/XXXXX.sh');
whiten /srv/http/app/templates/header.php
without redirecting or any popups? just a click and execute, no feedback on the current state needed.
Can a function be implemented directly in header.php?

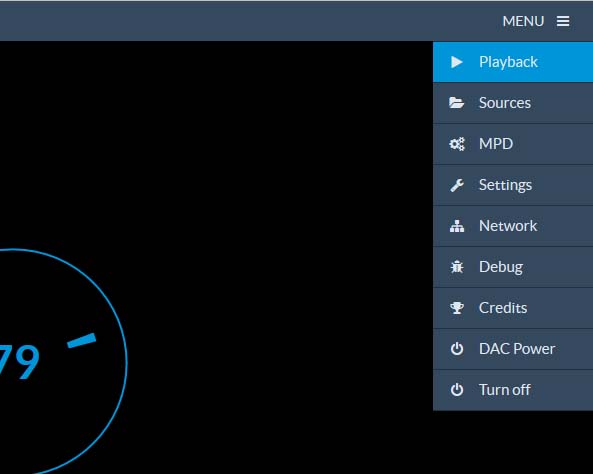

As it is, I added
<li class="<?=$this->uri(1, 'dac', 'active')?>"><a href="/dac/"><i class="fa fa-power-off"></i> DAC Power</a></li>
to header.php
I'm calling another dac.php and having that execute and redirect back. this is noticeable on mobile devices, as it's opening a new window. sloppy, I won't pretend to know php at all.

Code: Select all
<div id="menu-top">
    <div class="dropdown">
        <a id="menu-settings" class="dropdown-toggle" role="button" data-toggle="dropdown" data-target="#" href="#">MENU <i class="fa fa-bars dx"></i></a>
        <ul class="dropdown-menu" role="menu" aria-labelledby="menu-settings">
            <li class="<?=$this->uri(1, '', 'active')?>"><a href="/"><i class="fa fa-play"></i> Playback</a></li>
            <li class="<?=$this->uri(1, 'sources', 'active')?>"><a href="/sources/"><i class="fa fa-folder-open"></i> Sources</a></li>
            <li class="<?=$this->uri(1, 'mpd', 'active')?>"><a href="/mpd/"><i class="fa fa-cogs"></i> MPD</a></li>
            <li class="<?=$this->uri(1, 'settings', 'active')?>"><a href="/settings/"><i class="fa fa-wrench"></i> Settings</a></li>
            <li class="<?=$this->uri(1, 'network', 'active')?>"><a href="/network/"><i class="fa fa-sitemap"></i> Network</a></li>
            <li class="<?=$this->uri(1, 'debug', 'active')?>"><a href="/debug/"><i class="fa fa-bug"></i> Debug</a></li>
            <li class="<?=$this->uri(1, 'credits', 'active')?>"><a href="/credits/"><i class="fa fa-trophy"></i> Credits</a></li>
            <li class="<?=$this->uri(1, 'dac', 'active')?>"><a href="/dac/"><i class="fa fa-power-off"></i> DAC Power</a></li>
            <li><a href="#poweroff-modal" data-toggle="modal"><i class="fa fa-power-off"></i> Turn off</a></li>
        </ul>
    </div>
    <div class="playback-controls">
        <button id="previous" class="btn btn-default btn-cmd" title="Previous" data-cmd="previous"><i class="fa fa-step-backward"></i></button>
        <button id="stop" class="btn btn-default btn-cmd" title="Stop" data-cmd="stop"><i class="fa fa-stop"></i></button>
        <button id="play" class="btn btn-default btn-cmd" title="Play/Pause" data-cmd="play"><i class="fa fa-play"></i></button>
        <button id="next" class="btn btn-default btn-cmd" title="Next" data-cmd="next"><i class="fa fa-step-forward"></i></button>
    </div>
    <a class="home" href="/"><img src="<?=$this->asset('/img/logo.png')?>" class="logo" alt="RuneAudio"></a>
</div>


This calls dac.php which includes:
Code: Select all
<div class="container credits">
<form action="/dac/" method="post">
        <h2><b>Toggeling DAC Power </b><?php
                        $myscript= sysCmdAsync('sh /var/www/command/gpio_toggle.sh');
                        ?>
        </h2></p>


                </ul>
</form>
<head>
  <meta http-equiv="refresh" content="0;url=/">
  </meta>
</head>

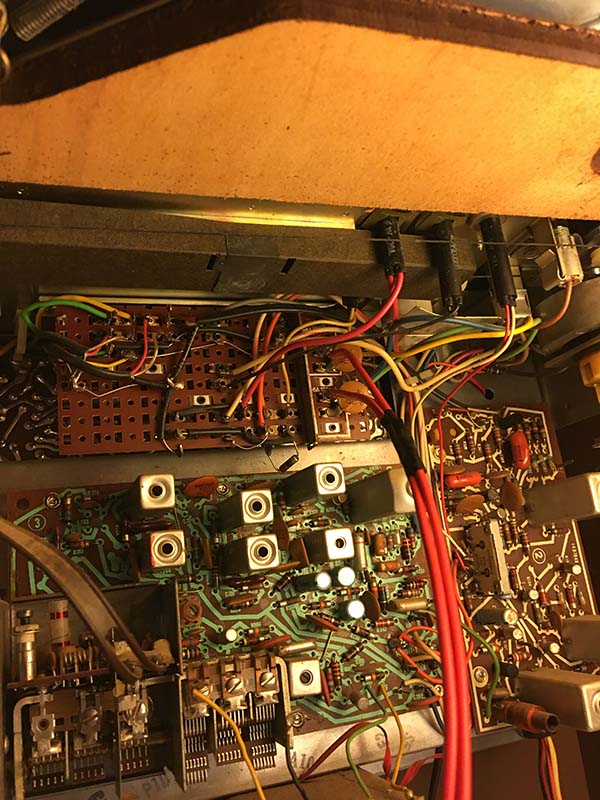

Yes, this is old tech. it was my Grammy's. So many records, so many memories... and now it's brought up to date with AirPlay, webradio, and NAS thanks to all the hard work from the Devs @ RuneAudio, cyber7's example in fade over time :) and the creator of RPI's
It's a good time to be alive.
Eph

Posts: 1
Joined: 27 Aug 2016, 19:03

Re: Turn amplifier ON/OFF via relay

Postby rern » 27 Dec 2016, 14:34

Raspberry Pi 3 > SMSL M8 DAC
GitHub
rern

Posts: 75
Joined: 14 Jul 2016, 08:15

support RuneAudio Donate with PayPal
