P1FI DAC, I2S, random audio clicks ?(SOLVED READ)

Raspberry Pi related support

Re: P1FI DAC, I2S, random audio clicks ?(SOLVED READ)

Postby PeteB » 27 Apr 2016, 20:47

What was the DC-DC converter for, in the first place, maybe so you could supply the board with some higher voltage which the regulator could not handle (?) or am I missing something?

P.
PeteB

Posts: 421
Joined: 06 Feb 2016, 05:07

Re: P1FI DAC, I2S, random audio clicks ?(SOLVED READ)

Postby TommyBoy » 27 Apr 2016, 22:04

pete, they all use a 5V to 5V unregulated type,
so it is like, what comes in, come out (+ noise)
and they connects the two ground in-out in parallel, so it is a noise injector, nothing more,
the 5V from the PI is actually nice and clean the first place, why ruin that ?
the pi is designed for 5V not 4V not 6V, so what you ask for is of no use.
so nope.. I have no answer, what it was there for the first place ??
feeling lost..
User avatar
TommyBoy

Posts: 111
Joined: 29 Mar 2016, 14:04
Location: Copenhagen Denmark

Re: P1FI DAC, I2S, random audio clicks ?(SOLVED READ)

Postby PeteB » 27 Apr 2016, 22:40

I know that the 5V charger-type power supplies can have very poor load regulation and noise, and the Pi can continue to work under those conditions. But the regulator which was after the converter (probably) needs a minimal forward voltage drop to do its job. Perhaps the regulator was there to raise the voltage, not lower it. A poor solution, if that was the reason, not to mention what you found with the ferrite bead. This looks like there is something missing, or something was mis-wired or left out of an earlier design or not copied very carefully when this PCB was laid out.
PeteB

Posts: 421
Joined: 06 Feb 2016, 05:07

Re: P1FI DAC, I2S, random audio clicks ?(SOLVED READ)

Postby rastus » 28 Apr 2016, 00:46

Why would the designers put something there that's not really needed, I mean they pay for the item to and put it on, then we say it's not needed and in fact it would work better without it? Doesn't make sense to me. But then anything to do with circuitry never does make sense to me. I'm really very confused right now (damned Bipolar). I'm confused about... circuitry, why this ferrite bead is there (should it be?), why TommyBoy says it shouldn't be there. I'm even confused about the fact that I sort of understand what he means. PeteB, you know about this shiit (I've read enough of your posts to know that), is this for real? I mean really? Could it be that when they went from the earlier model board (Raspberry Pi Model B with the P5 connector) that they carried over the design to this new model (that does not have the P5 connector)? And, why the Hifiberry card has so little in the way of circuitry. I don't know, I think my jury's still out on this one, plus me and solder do NOT mix. Am I babbling?

HiFi DAC+ HAT – Raspberry Pi 2 & B+ (PCM5122 DAC chip from Burr-Brown Corporation)
http://www.geekroo.com.au/products/1482
Hires pics:
http://www.geekroo.com.au/wp-content/up ... load-9.jpg
http://www.geekroo.com.au/wp-content/up ... load-6.jpg
http://www.geekroo.com.au/wp-content/up ... load-7.jpg

HiFi Digital DAC PiCobbe for the Raspberry Pi (Raspberry Pi Model B, WM8804G chip from Wolfson Microelectronic)
http://www.geekroo.com.au/products/1270
Hires pics:
http://www.geekroo.com.au/wp-content/up ... 165908.jpg
http://www.geekroo.com.au/wp-content/up ... 170231.jpg
http://www.geekroo.com.au/wp-content/up ... 170105.jpg

I notice the Hifiberry DAC+ has a lot less circuitry on the board when compared to the PiFi:

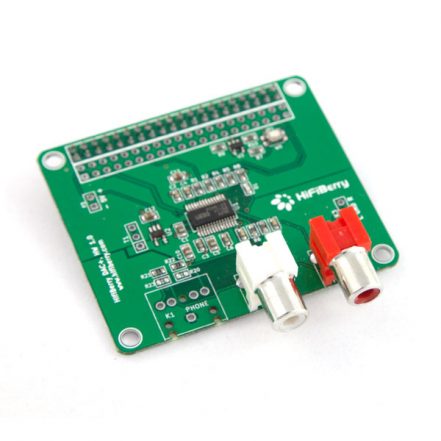

https://www.hifiberry.com/wp-content/up ... 41x441.jpg
